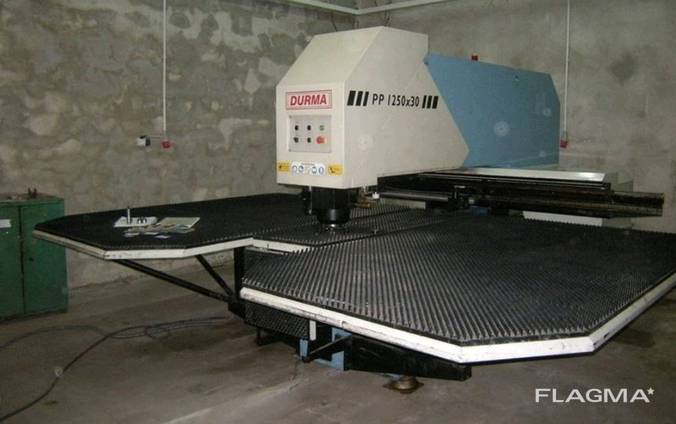

Coordinate Punching Press Durma PP 12530

Durma, type PP 12530.
Technical data:
Effort 300 kN (30 T) Max.
Sheet thickness (for black steel) 6 mm Max. Sheet thickness (for stainless steel) 4 mm.
Max. Stroke on the X axis 2000 mm.
Stroke on the Y axis (MUTLITOOL) 1250 mm Max. Stroke on the Y axis (one tool) 1280 mm
Automatic positioning range up to 10000 mm
Max. Number of moves 600 / min. Number of clamps 2 pcs.
Clamping force 1000 kg
Working height 980 mm
The size of the table is 2400 x 3600 mm
Max. Diameter of the tool in MULTITOOL shins 24 mm.
Max. The diameter of one tool is 88.9 mm
Power 7.5 kW
A lot of oil tank of 160 l
The size of the machine is 3600 × 4100 × 2450 mm
Weight 8600 kg
PP 12530
: control SIEMENS SINUMERIK 840Di; MUTITOOL 6 head for tools; Brush table;
Automatic control of the correct position of clamps;
Automatic lubrication;
The modem from programmable is provided for the chosen diagnostics; Vibration isolators - 4 pieces;
DTR in Polish;
Metalix program;
Production of Metalix software 2002. The car is in very good technical condition. was used little.
