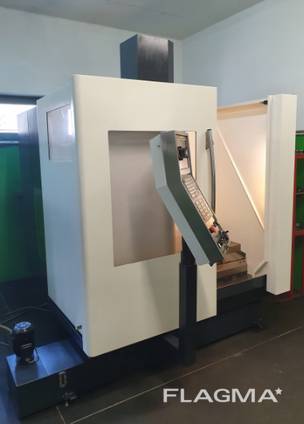

CNC milling machine DMG DMC 635 V ECO

DMG DMC 635 V ECO.

the machine was purchased in 2008, regularly serviced, very well maintained. Very good condition

Technical data :

- control: Fanuc 0iMc

- number of hours: 7800

- spindle rotation speed: 20-8000 rpm.

- tool holder: ISO 40

- ranges of movement along the axes X, Y, Z: 635x510x460 mm

- maximum workpiece weight: 600 kg

- number of storage places: 20 pcs.

- tool store: double grip

- distance from the top of the spindle to the table: 120-580 mm

- tool clamping force: 10 kN

- maximum tool diameter: 80 mm

- maximum tool length: 300 mm

- tool change time: about 1.6 s

- tool change time from chip to chip: 5 s

- working speed: axis X, Y, Z - no more than 20,000 mm / min

- accelerated travel: axis X, Y, Z - 25 m / min.

- maximum strength: X, Y, Z - 4 kN

- maximum power consumption: 17 kVA

- rated current: 28 A

- machine dimensions: 2050x2530x2650 mm

- machine weight: about 3700 kg
